Schematics - W2EB, Bill Lazure SWR and RF Power Meter

Old Combined Meter Pickup Unit

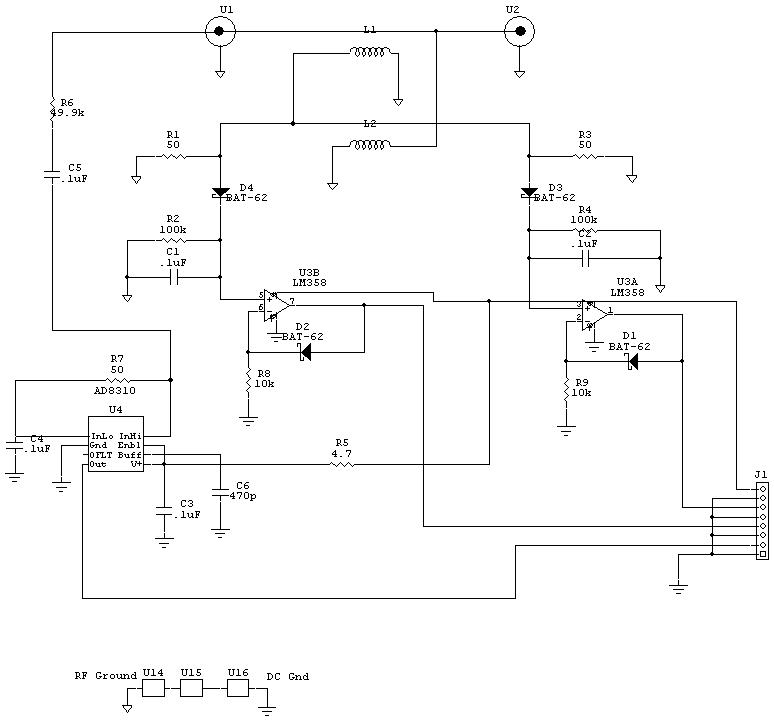

Schematic of the old Lazure combined SWR and RF Power meter pickup unit

Old Combined Meter - Display

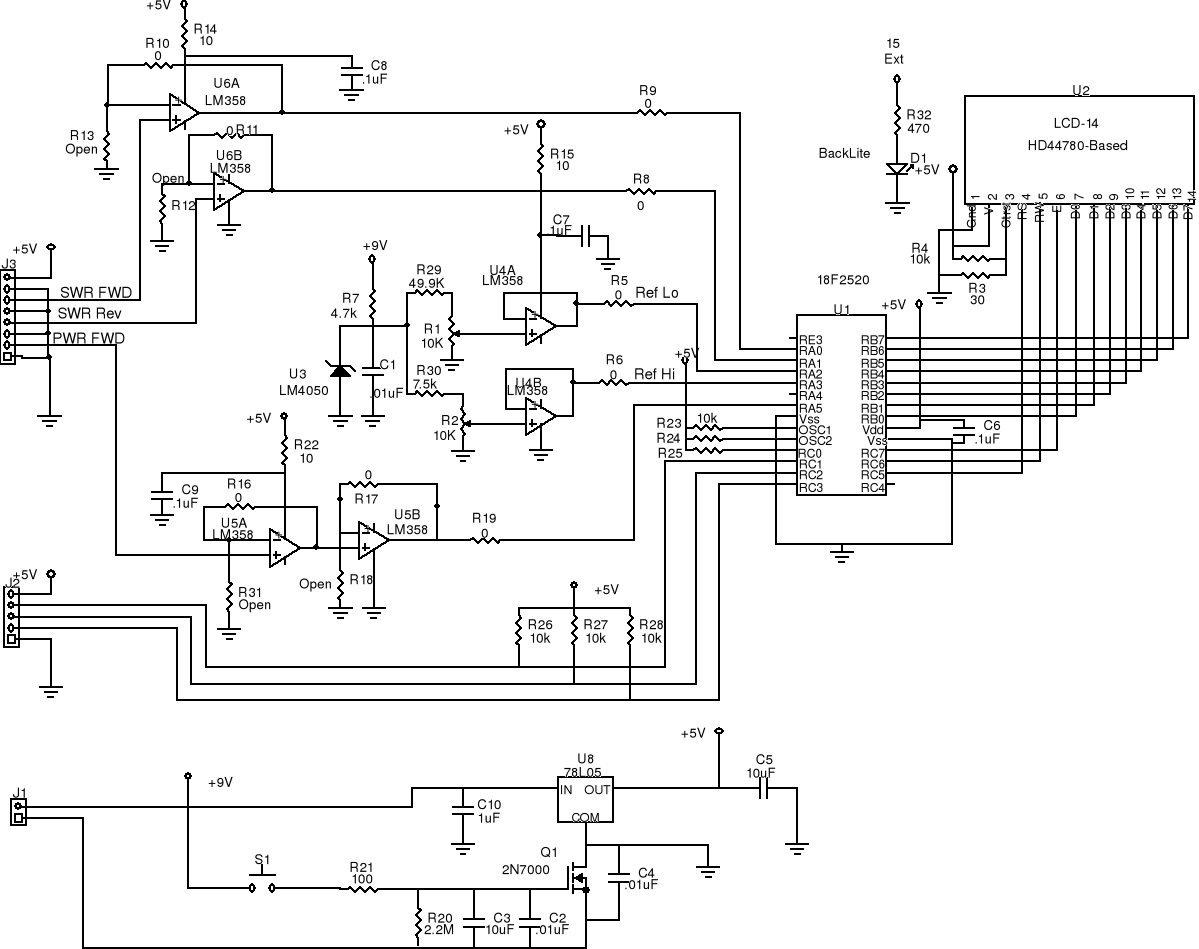

Schematic - Lazure Combined SWR and RF Power Meter Digital Board

New Power Meter

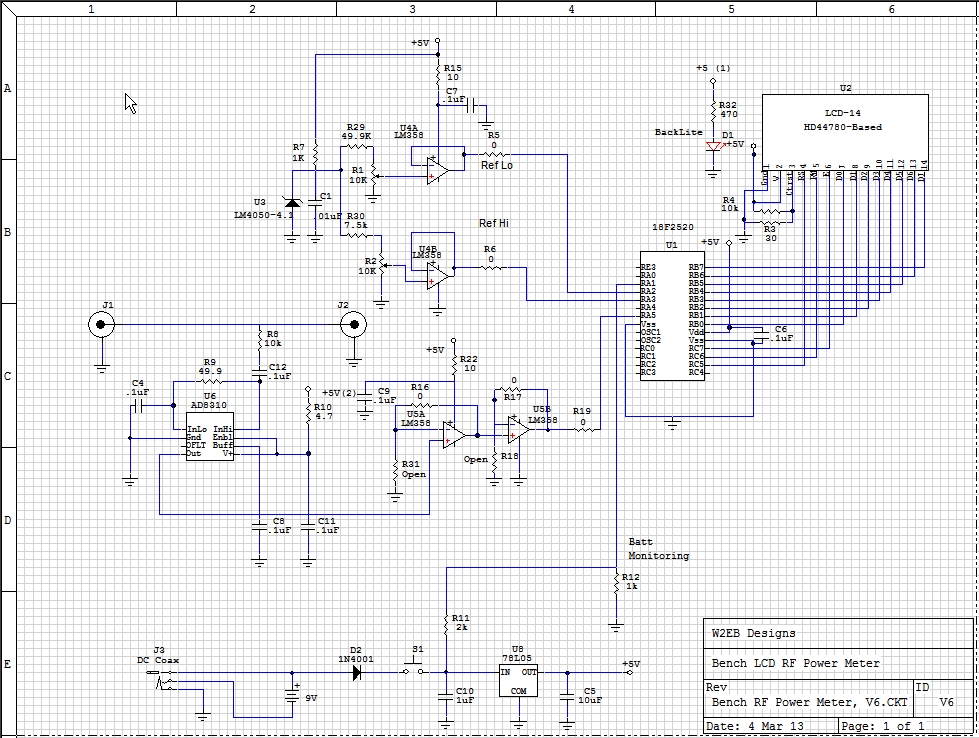

Schematic - Lazure RF Power meter

New SWR Meter

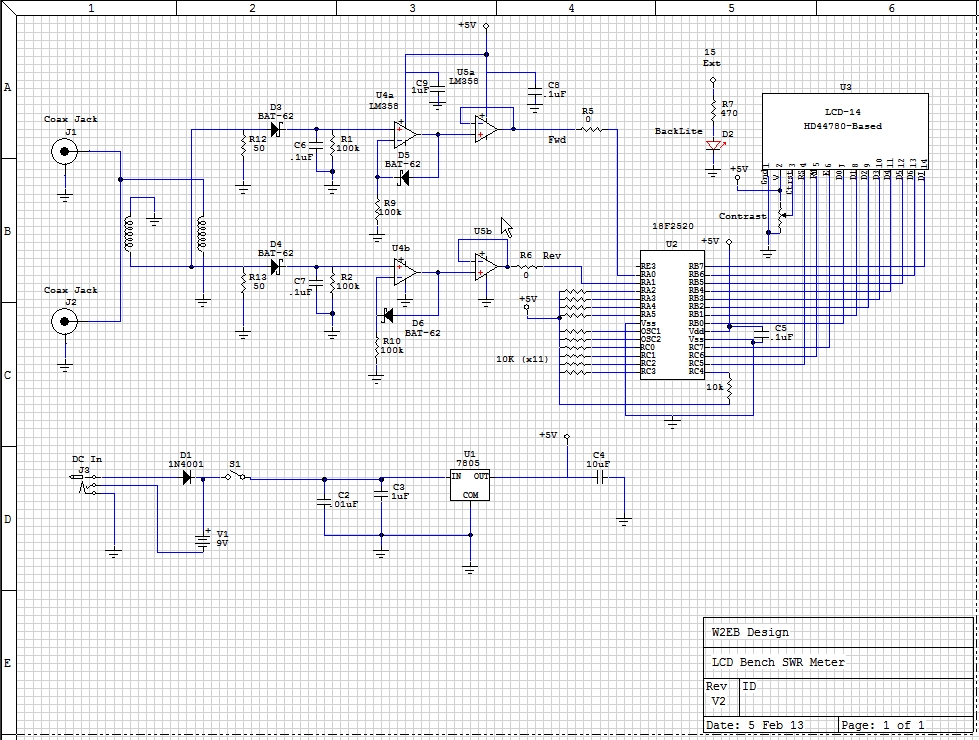

Schematic - Lazure SWR meter
